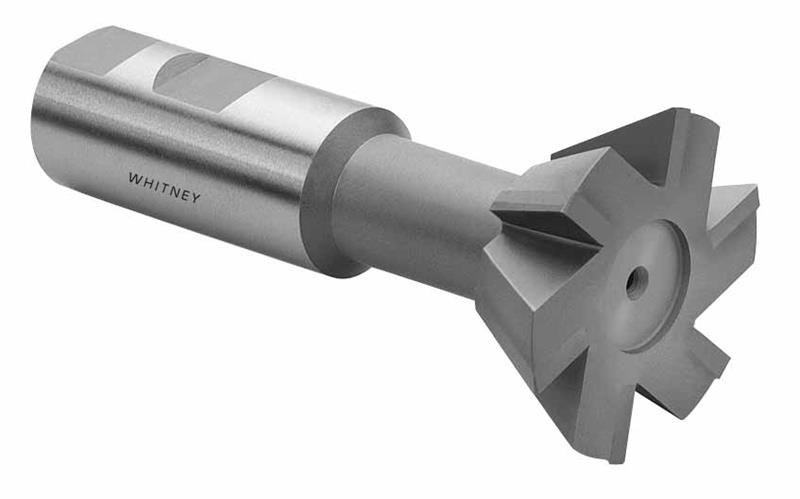

1/2 in. x 60 deg. Carbide Tipped Dovetail Milling Cutter - Uncoated/Straight Tooth

  • Item Code: C905060
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Dovetail Milling Cutters Carbide Tipped

Straight Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Single Angle
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672300792
Coating/Finish None
Shank Diameter 3/8"
Tooth Configuration Straight
Number of Teeth 3
Overall Length (Inch) 2-1/8"
Shank Type Weldon
Shank Diameter Tolerance +0", -0.0005"
Included Angle 60
Brand Whitney Tool
Angle Tolerance 1/4 deg.
Metric Cutting Diameter 12.70 mm
OD Tolerance 0.010"
Style 60 Degree
Cut Width 7/32"
Fractional Cutting Diameter 1/2"
Material Carbide Tipped
Width Tolerance 0.015"
