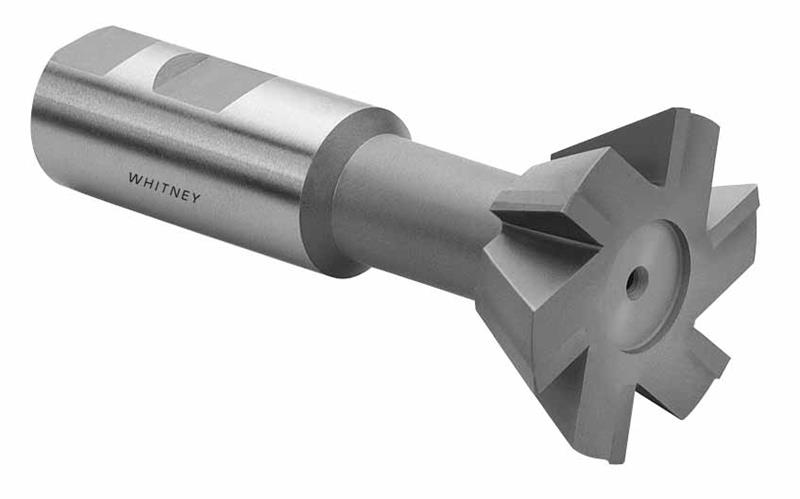

2 in. x 60 deg. Carbide Tipped Dovetail Milling Cutter - Uncoated/Straight Tooth

  • Item Code: C920060
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Dovetail Milling Cutters Carbide Tipped

Straight Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Single Angle
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672300846
Shank Diameter 1"
Tooth Configuration Straight
OD Tolerance 0.010"
Angle Tolerance 1/4 deg.
Included Angle 60
Style 60 Degree
Coating/Finish None
Cut Width 3/4"
Shank Diameter Tolerance +0", -0.0005"
Number of Teeth 6
Shank Type Weldon
Brand Whitney Tool
Fractional Cutting Diameter 2"
Overall Length (Inch) 4-1/4"
Material Carbide Tipped
Metric Cutting Diameter 50.80 mm
Width Tolerance 0.015"
