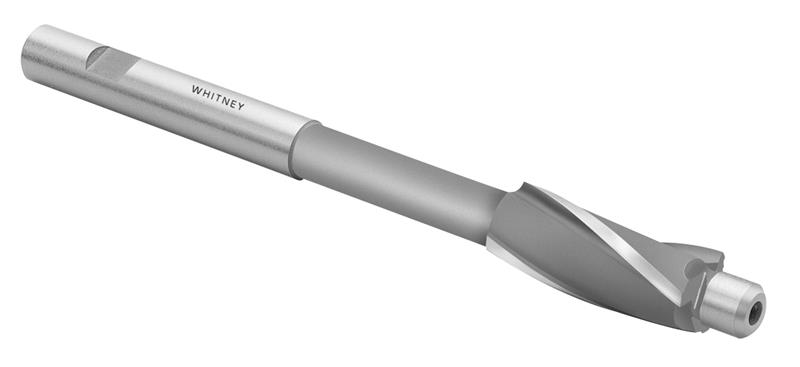

#10 Screw Size HSS Solid Pilot Cap Screw Counterbore - .1880 in. Pilot Dia.

  • Item Code: CBSP03321
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Cap Screw Counterbores - Inch

Solid Pilot

Made in USA

Features Tech Specs

Features

Back To Top
    • High Speed Steel
    • Weldon Shank
    • 3-Flute Rugged Free Cutting Design

Tech Specs

Back To Top
UPC 648672105373
Material High Speed Steel
OD Tolerance +0.002", -0"
Pilot Diameter Tolerance +0", -0.0005"
Brand Whitney Tool
Overall Length (Inch) 3-1/2"
Tooth Configuration 20 deg. Right Hand Helix
Shank Diameter 3/8"
Metric Cutting Diameter 8.4328 mm
Number of Teeth 3
Pilot Diameter Decimal 0.1880"
Shank Type Weldon
Coating/Finish None
Shank Diameter Tolerance +0", -0.0005"
Decimal Cutting Diameter 0.3320"
