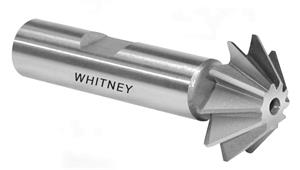

1 in. x 45 deg. Uncoated HSS Single Angle Chamfer Milling Cutter

  • Item Code: CH10045
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutters - High Speed Steel

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank
    • 45 deg. and 60 deg. Angles

Tech Specs

Back To Top
UPC 648672103249
Material High Speed Steel
OD Tolerance 0.015"
Shank Type Weldon
Brand Whitney Tool
Fractional Cutting Diameter 1"
Metric Cutting Diameter 25.40 mm
Overall Length (Inch) 2-1/2"
Shank Diameter Tolerance +0", -0.0005"
Tooth Configuration Straight
Coating None
Shank Diameter 1/2"
Style Single Angle
Included Angle 45
Angle Tolerance 1/4 deg.
Angle Width 5/16"
Number of Teeth 10
Width Tolerance 0.015"
