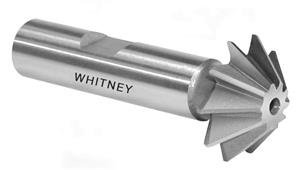

1 in. x 60 deg. Uncoated HSS Single Angle Chamfer Milling Cutter
- Item Code: CH10060
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Single Angle Chamfer Milling Cutters - High Speed Steel
Made in USA
Features
Back To Top- Right Hand Cut
- Weldon Shank
- 45 deg. and 60 deg. Angles
Tech Specs
Back To Top| Angle Width | 7/16" |
|---|---|
| UPC | 648672103287 |
| Included Angle | 60 |
| Number of Teeth | 10 |
| Overall Length (Inch) | 2-1/2" |
| Shank Type | Weldon |
| Width Tolerance | 0.015" |
| Brand | Whitney Tool |
| Fractional Cutting Diameter | 1" |
| OD Tolerance | 0.015" |
| Coating | None |
| Style | Single Angle |
| Metric Cutting Diameter | 25.40 mm |
| Shank Diameter Tolerance | +0", -0.0005" |
| Shank Diameter | 1/2" |
| Material | High Speed Steel |
| Angle Tolerance | 1/4 deg. |
| Tooth Configuration | Straight |
