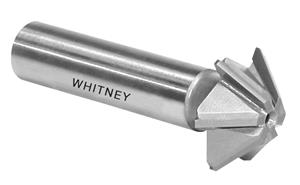

1 in. x 60 deg. Uncoated Carbide Tipped Single Angle Chamfer Milling Cutter

  • Item Code: CH10060C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutter - Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • Straight Tooth
    • General Purpose Carbide Grade
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672301027
Angle Tolerance 1/4 deg.
Coating None
Shank Diameter 1/2"
Style Single Angle
Tooth Configuration Straight
Material Carbide Tipped
Width Tolerance 0.015"
Angle Width 7/16"
Brand Whitney Tool
Fractional Cutting Diameter 1"
OD Tolerance 0.015"
Included Angle 60
Metric Cutting Diameter 25.40 mm
Number of Teeth 6
Overall Length (Inch) 2-1/2"
Shank Diameter Tolerance +0", -0.0005"
Shank Type Weldon
