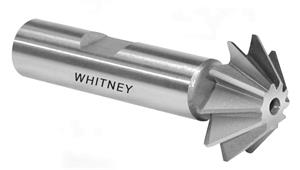

1/2 in. x 60 deg. Uncoated HSS Single Angle Chamfer Milling Cutter

  • Item Code: CH5060
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutters - High Speed Steel

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank
    • 45 deg. and 60 deg. Angles

Tech Specs

Back To Top
UPC 648672103263
Brand Whitney Tool
OD Tolerance 0.015"
Metric Cutting Diameter 12.70 mm
Shank Diameter 3/8"
Tooth Configuration Straight
Width Tolerance 0.015"
Fractional Cutting Diameter 1/2"
Included Angle 60
Number of Teeth 8
Coating None
Overall Length (Inch) 2-1/8"
Shank Diameter Tolerance +0", -0.0005"
Style Single Angle
Angle Width 7/32"
Shank Type Weldon
Angle Tolerance 1/4 deg.
Material High Speed Steel
