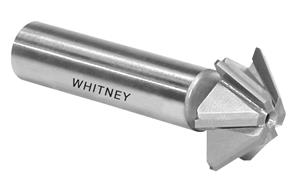

3/4 in. x 45 deg. Uncoated Carbide Tipped Single Angle Chamfer Milling Cutter

  • Item Code: CH7545C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutter - Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • Straight Tooth
    • General Purpose Carbide Grade
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672300976
OD Tolerance 0.015"
Angle Tolerance 1/4 deg.
Angle Width 3/16"
Brand Whitney Tool
Included Angle 45
Fractional Cutting Diameter 3/4"
Material Carbide Tipped
Metric Cutting Diameter 19.05 mm
Width Tolerance 0.015"
Coating None
Number of Teeth 6
Overall Length (Inch) 2-1/8"
Shank Type Weldon
Shank Diameter 3/8"
Shank Diameter Tolerance +0", -0.0005"
Style Single Angle
Tooth Configuration Straight
