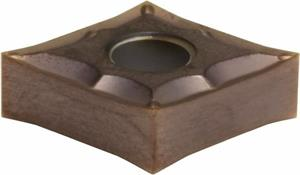

CNGG431 ESU AC510U Grade, Carbide Turning Insert

  • Item Code: CNGG431ESU AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style CNGG
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0156 Inch
Insert Size 431
Shape Diamond
Included Angle 80
Inscribed Circle 0.5000 Inch
Insert Type Negative
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC510U
Number of Chipbreaker Double
Number of Edges 4
Brand Sumitomo
Chipbreaker Type ESU
Hole Style Straight
Material Solid Carbide
Mounting Hole Diameter 0.2031 Inch
Rake Angle 13 Degree
Relief Angle 0 Degree
