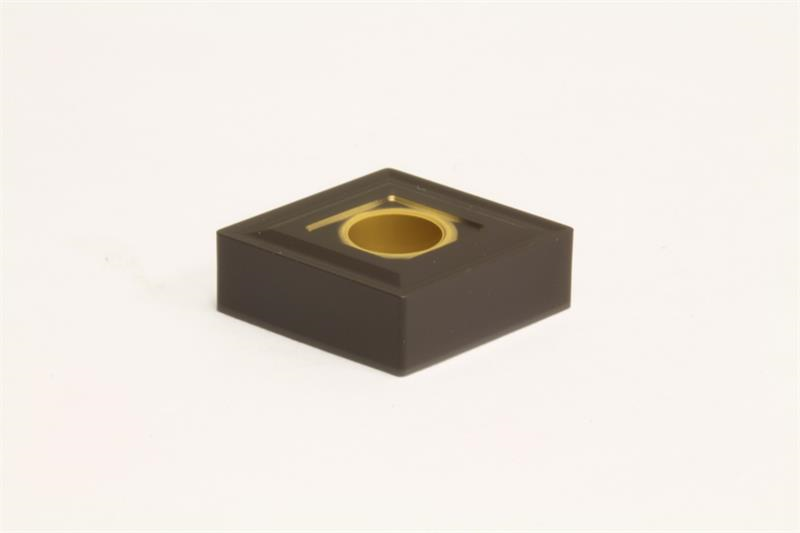

CNMG432 EGZ AC415K Grade Carbide Turning Insert

  • Item Code: CNMG432EGZ AC415K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EGZ
Coating/Finish CVD
Shape Diamond
Brand Sumitomo
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0313 Inch
Inscribed Circle 0.5000 Inch
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Grade AC415K
Insert Style CNMG
Number of Edges 4
Product Name Turning Insert
Rake Angle 0 Degree
Included Angle 80
Material Solid Carbide
