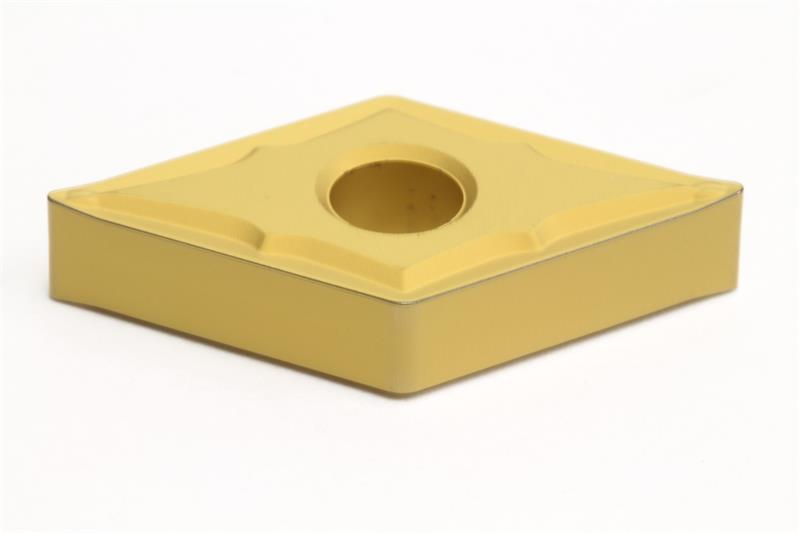

DNMG433 ESU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG433ESU-AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Brand Sumitomo
Corner Radius 0.0469 Inch
Insert Style DNMG
Rake Angle 13 Degree
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Coating/Finish CVD
Shape Diamond
Grade AC820P
Number of Edges 4
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type ESU
Included Angle 55
Insert Size 433
Material Solid Carbide
