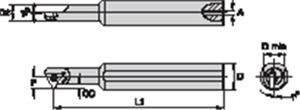

5/8 Inch Shank Dia. x 0.250 Inch Head Dia. x 4.000 Inch Overall Length x 0.322 Inch Min Dia. S-Clamp RH Boring Bar

  • Item Code: FSII2506257560R-WG
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Head Diameter 0.2500 Inch
Insert Style FSII
Min Bore Diameter 0.3220 Inch
Axial Rake Angle -2 Degree
Lead Angle 30 Degree
Brand WIDIA
Cutting Height 0.0100 Inch
Unit of Measure Inch
Drive Size T7
Grade WG
Shank Length 3.2500 Inch
Shank Diameter 5/8 Inch
Included Angle 60
Insert Shape Triangle
Product Type Boring Bar
Hand of Tool Right
Head Length 0.7500 Inch
Tool Length 4 Inch
