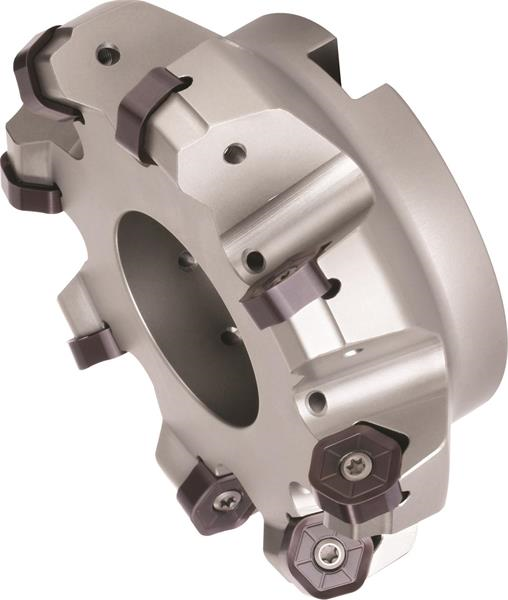

3 Inch Dia. x 1.750 Inch Length x 1.00 Inch ID 6 Flute Shell Face Mill Holder
- Item Code: M1200HF300Z06S100HN09
- Brand: WIDIA
- Unit Size: 1
Description
Series Victory M1200
Shell Mills
Features
Back To Top- Twelve cutting edges.
- First choice for general face milling.
- Low cutting forces for maximum productivity.
Tech Specs
Back To Top| Depth of Cut | 0.0870 Inch |
|---|---|
| Brand | WIDIA |
| Flute Style | Helix |
| Number of Flutes | 6 |
| Shank Diameter | 1 Inch |
| Included Angle | 120 |
| Lead Angle | 15 Deg |
| Cutting Diameter | 3 Inch |
| Insert Shape | Hexagon |
| Type | Indexable Milling Cutters |
| Coolant Through (Yes/No) | Yes |
| Product Type | Face Mill |
| Direction of Cut | Right Hand |
| Overall Length | 1.7500 Inch |
