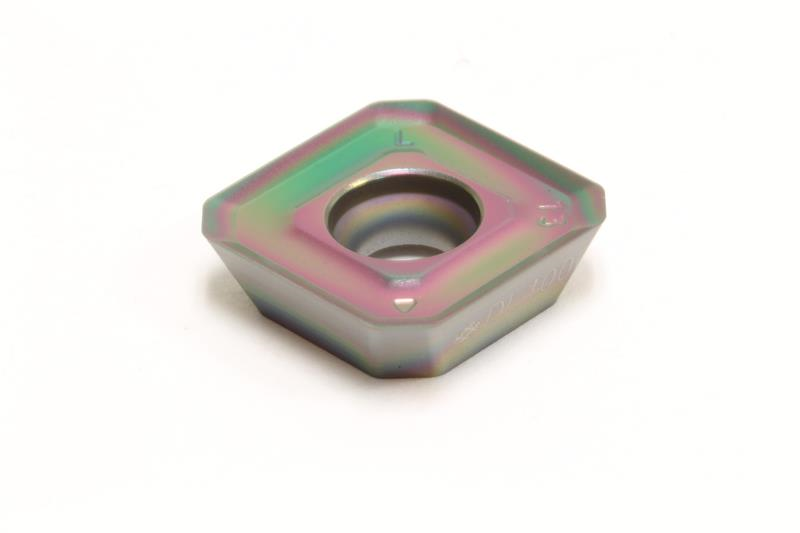

SEET13T3 DL1000 Grade, DCL Coated, Carbide Milling Insert
- Item Code: SEET13T3AGFNL DL1000
- Brand: Sumitomo
- Unit Size: 1
Description
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Features
Back To Top- SEET is a close tolerance, peripheral ground insert type which may provide better surface finish and repeatability
Tech Specs
Back To Top| Chipbreaker Type | AGFNL |
|---|---|
| Face Width | 0.0639 Inch |
| Insert Style | SEET |
| Product Name | Milling Insert |
| Brand | Sumitomo |
| Length | 0.5280 Inch |
| Grade | DL1000 |
| Relief Angle | 20 Degree |
| Thickness | 0.0156 Inch |
| Coating/Finish | Coated |
| Material | Solid Carbide |
| Insert Size | 13T3 |
