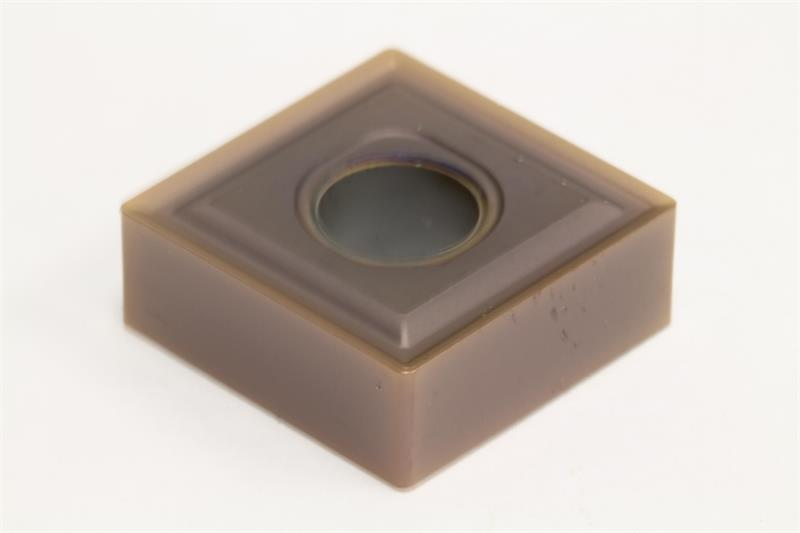

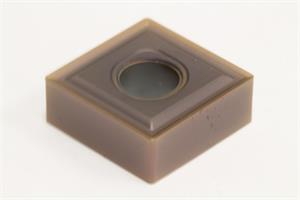

SNMG643 EEX AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: SNMG643EEX AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC520U
Included Angle 90
Product Name Turning Insert
Inscribed Circle 0.7500 Inch
Thickness 0.2500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Insert Style SNMG
Number of Edges 4
Rake Angle 16 Degree
Insert Size 643
Insert Type Negative
Relief Angle 0 Degree
Brand Sumitomo
Chipbreaker Type EEX
Corner Radius 0.0469 Inch
Material Solid Carbide
Mounting Hole Diameter 0.3126 Inch
Shape Square
