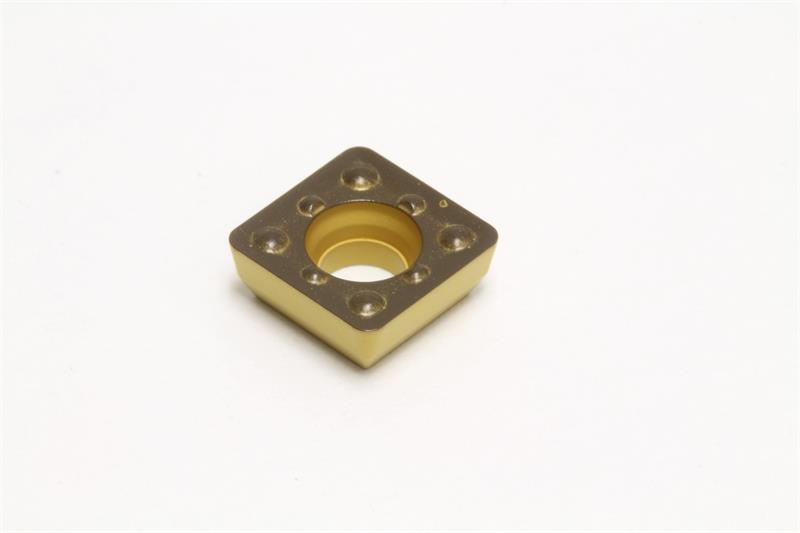

SPMT2.522 ENS AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: SPMT2.522ENS AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ENS
Grade AC630M
Insert Size 2.522
Material Solid Carbide
Coating/Finish CVD
Number of Edges 4
Rake Angle 10 Degree
Mounting Hole Diameter 0.1340 Inch
Shape Square
Corner Radius 0.0313 Inch
Brand Sumitomo
Product Name Turning Insert
Relief Angle 11 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style SPMT
Included Angle 90
Inscribed Circle 0.3125 Inch
Insert Type Positive
Thickness 0.1250 Inch
