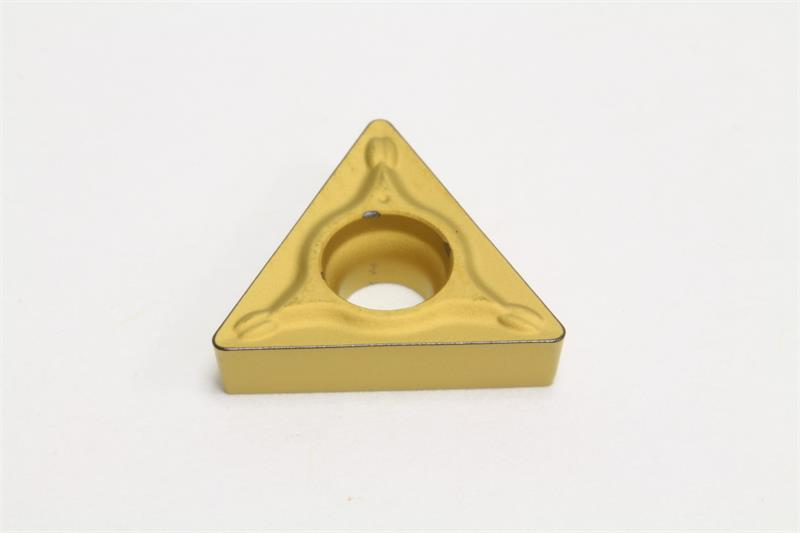

TCMT21.51 ESU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TCMT21.51ESU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish Coated
Thickness 0.0940 Inch
Insert Style TCMT
Mounting Hole Diameter 0.1100 Inch
Rake Angle 8 Degree
Shape Triangular
Grade AC700G
Inscribed Circle 0.2500 Inch
Corner Radius 0.0156 Inch
Included Angle 60
Relief Angle 7 Degree
Insert Size 21.51
Brand Sumitomo
Chipbreaker Type ESU
Product Name Turning Insert
Material Solid Carbide
Insert Type Positive
Number of Edges 3
