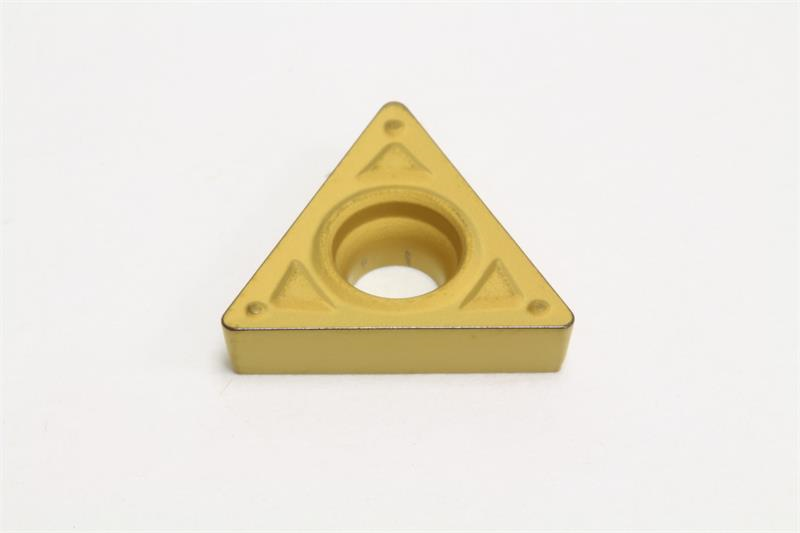

TCMT21.52 ENK AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TCMT21.52ENK-AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Insert Type Positive
Corner Radius 0.0313 Inch
Material Solid Carbide
Mounting Hole Diameter 0.1100 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish Coated
Insert Size 21.52
Thickness 0.0940 Inch
Grade AC700G
Inscribed Circle 0.2500 Inch
Included Angle 60
Number of Edges 3
Product Name Turning Insert
Chipbreaker Type ENK
Insert Style TCMT
Shape Triangular
Rake Angle 8 Degree
Relief Angle 7 Degree
