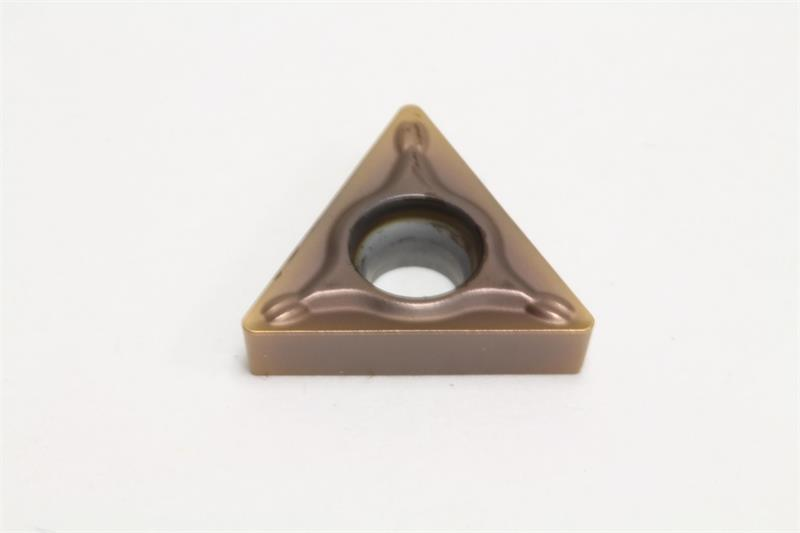

TCMT32.51 ESU AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TCMT32.51ESU AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Number of Edges 3
Product Name Turning Insert
Corner Radius 0.0156 Inch
Insert Size 32.51
Mounting Hole Diameter 0.1693 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Thickness 0.0156 Inch
Brand Sumitomo
Included Angle 60
Inscribed Circle 0.3750 Inch
Insert Type Positive
Chipbreaker Type ESU
Material Solid Carbide
Shape Triangular
Rake Angle 8 Degree
Relief Angle 7 Degree
Grade AC510U
Insert Style TCMT
