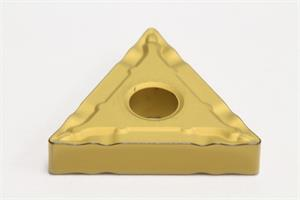

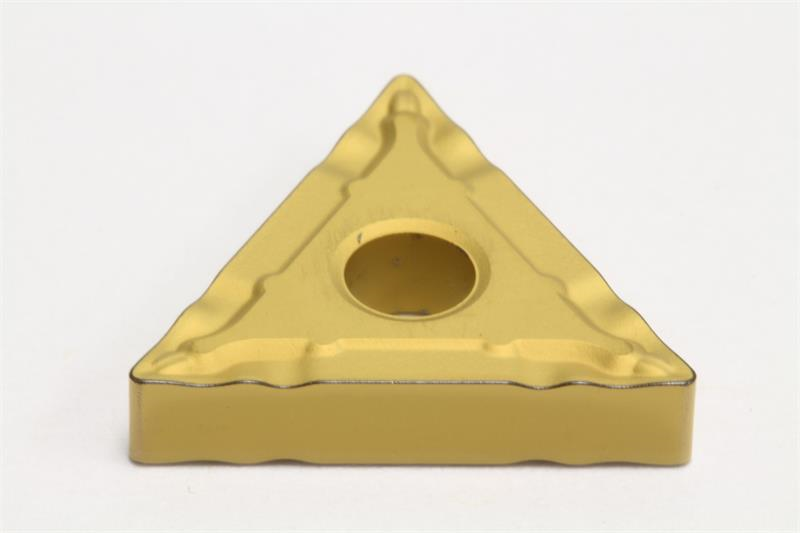

TNMG432 ESX AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TNMG432ESX AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC700G
Number of Edges 3
Product Name Turning Insert
Thickness 0.1875 Inch
Brand Sumitomo
Included Angle 60
Insert Style TNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Insert Type Negative
Chipbreaker Type ESX
Corner Radius 0.0313 Inch
Material Solid Carbide
Rake Angle 3 Degree
Shape Triangular
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Coating/Finish Coated
