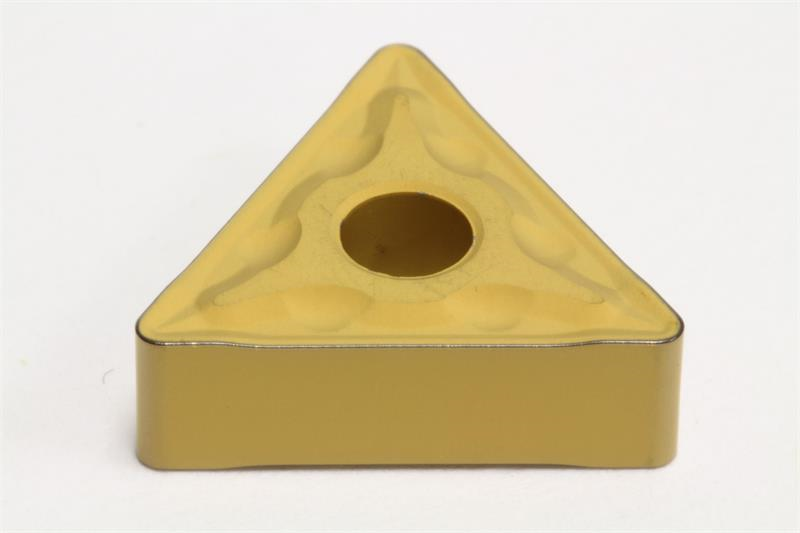

TNMG434 EMU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TNMG434EMU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish Coated
Inscribed Circle 0.5000 Inch
Insert Size 434
Insert Type Negative
Brand Sumitomo
Grade AC700G
Product Name Turning Insert
Chipbreaker Type EMU
Included Angle 60
Thickness 0.1875 Inch
Insert Style TNMG
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Material Solid Carbide
Number of Edges 3
Corner Radius 0.0625 Inch
Shape Triangular
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Rake Angle 4 Degree
