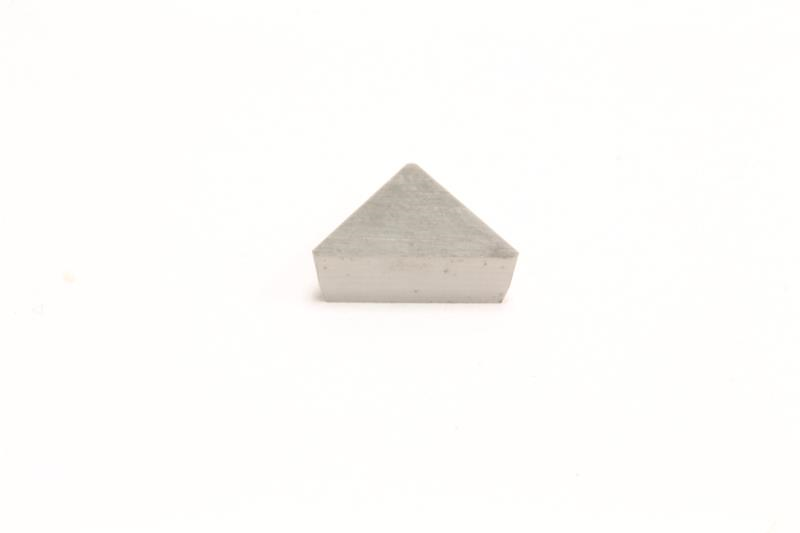

TPG323 G10E Grade, Carbide Turning Insert

  • Item Code: TPG323 G10E
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 323
Grade G10E
Number of Edges 3
Product Name Turning Insert
Brand Sumitomo
Corner Radius 0.0469 Inch
Included Angle 60
Inscribed Circle 0.3750 Inch
Insert Type Positive
Relief Angle 11 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish None
Chipbreaker Type No
Thickness 0.1250 Inch
Material Solid Carbide
Shape Triangular
Insert Style TPG
