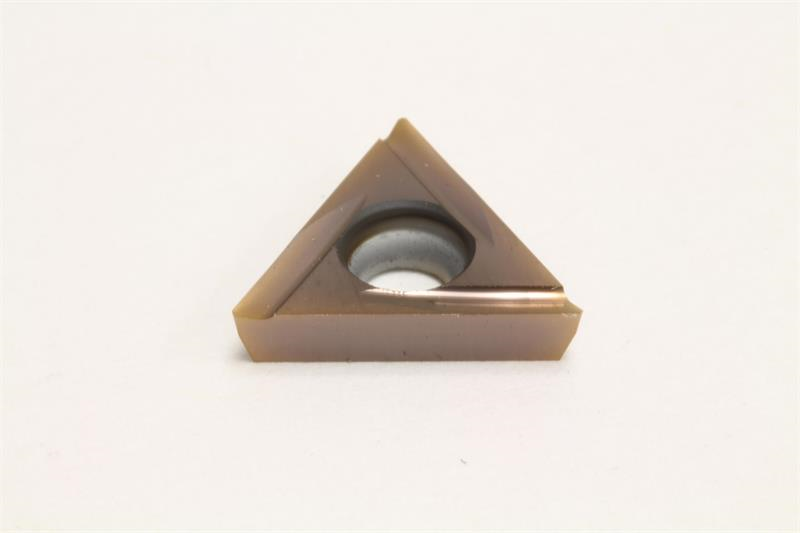

TPGT221 FY AC530U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: TPGT221LFX AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Inscribed Circle 0.2500 Inch
Insert Size 221
Number of Edges 3
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC530U
Rake Angle 15 Degree
Thickness 0.1250 Inch
Brand Sumitomo
Insert Type Positive
Relief Angle 11 Degree
Chipbreaker Type FX
Insert Style TPGT
Shape Triangular
Included Angle 60
Material Solid Carbide
Mounting Hole Diameter 0.1300 Inch
