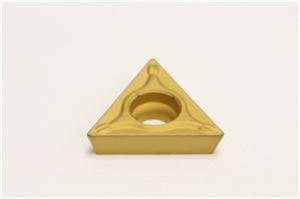

TPMT21.51 ESU AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: TPMT21.51ESU-AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 21.51
Rake Angle 8 Degree
Material Solid Carbide
Number of Edges 3
Corner Radius 0.0156 Inch
Shape Triangular
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish Coated
Grade AC700G
Mounting Hole Diameter 0.1070 Inch
Thickness 0.0940 Inch
Brand Sumitomo
Chipbreaker Type ESU
Product Name Turning Insert
Relief Angle 11 Degree
Included Angle 60
Inscribed Circle 0.2500 Inch
Insert Style TPMT
Insert Type Positive
