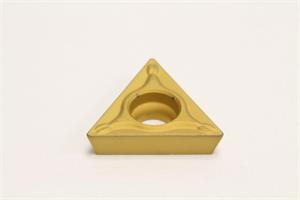

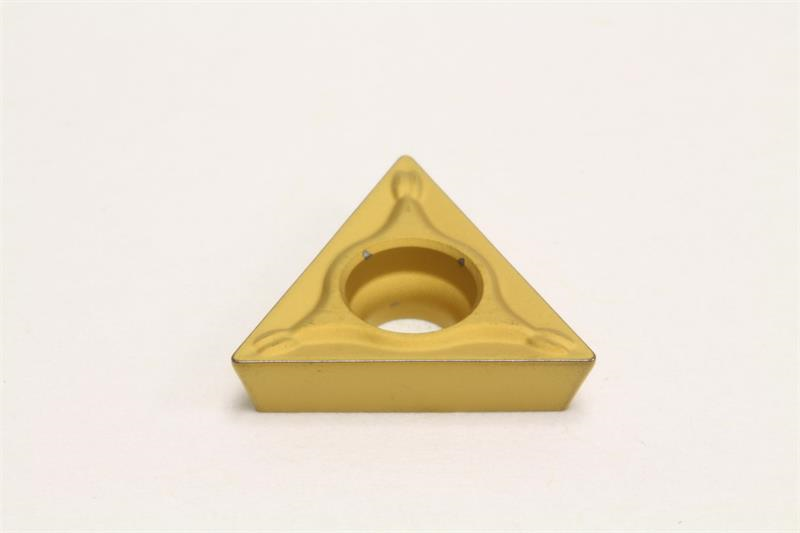

TMPT32.52 ESU AC810P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: TPMT32.52ESU AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Coating/Finish CVD
Material Solid Carbide
Shape Triangular
Grade AC810P
Insert Type Positive
Number of Edges 3
Relief Angle 11 Degree
Corner Radius 0.0313 Inch
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Included Angle 60
Mounting Hole Diameter 0.1693 Inch
Insert Size 32.52
Insert Style TPMT
Rake Angle 8 Degree
