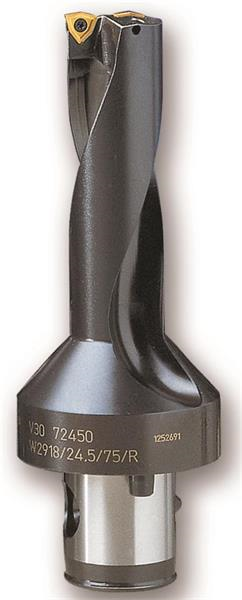

3.154 Inch Max Drill Depth, 4xD, 0.765 Inch Diameter, KOMET KUB Trigon® Indexable Drill Insert
- Item Code: V30 91941
- Brand: Komet
- Unit Size: 1
Description
KOMET KUB Trigon® - Insert Drill with ABS® Connection, R.H. cutting
2 Inserts, ABS 50 Modular Connection
Tech Specs
Back To Top| Body Length | 4.5320 Inch |
|---|---|
| Drill Diameter | 0.7650 Inch |
| Maximum Drill Depth | 3.1540 Inch |
| Maximum Drill Diameter | 0.805 Inch |
| Overall Length | 4.532 Inch |
| Cutting Direction | Right Hand |
| Insert Compatibility | WOEX 030204 |
| Product Type | Indexable Drill |
| Brand | Komet |
| Modular Connection Size | ABS 50 |
| Shank Type | Modular Connection |
| Drill Style | V30 |
| Number of Drill Inserts | 2 |
| Drill Depth by Diameter Ratio | 4xD |
| Series | KUB Trigon |
| Type | Indexable Insert Drill |
