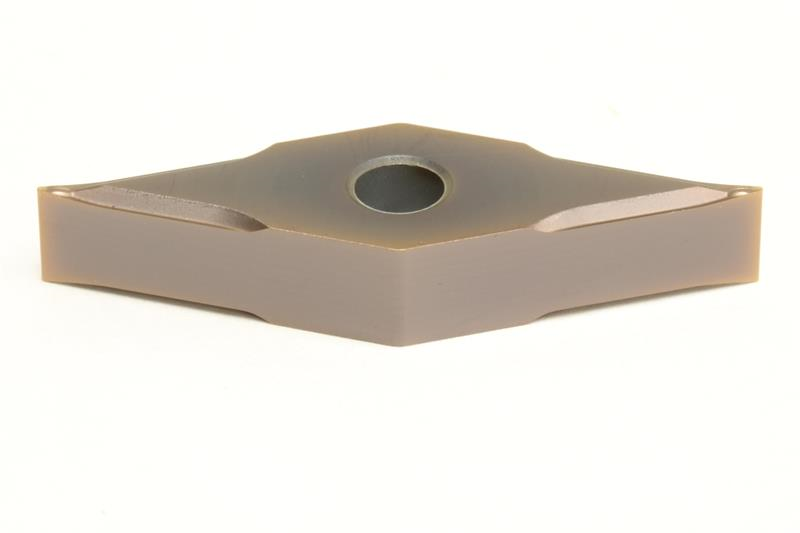

VNGG330.5 ESU AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: VNGG330.5ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Rake Angle 13 Degree
Thickness 0.1875 Inch
Relief Angle 0 Degree
Chipbreaker Type ESU
Insert Size 330
Number of Edges 4
Mounting Hole Diameter 0.1500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Corner Radius 0.0078 Inch
Grade AC520U
Material Solid Carbide
Brand Sumitomo
Insert Style VNGG
Shape Diamond
Included Angle 35
Insert Type Negative
