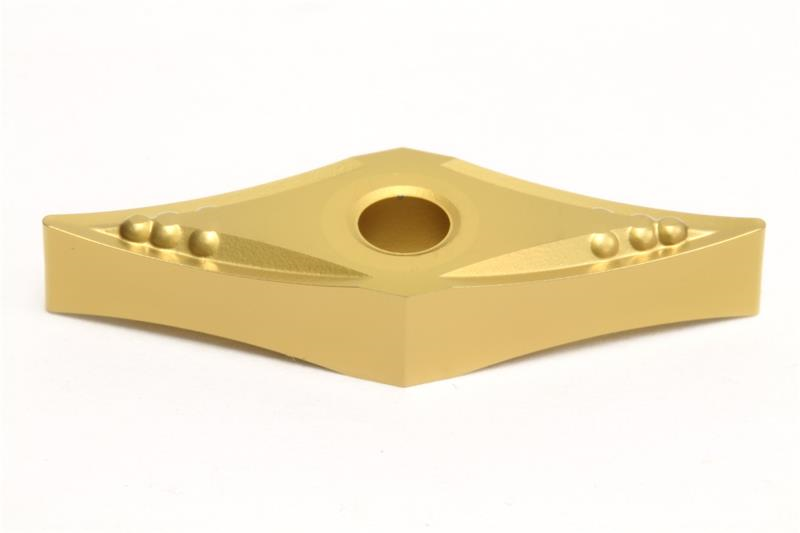

VNMG331 EUP AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG331EUP AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC820P
Insert Size 331
Mounting Hole Diameter 0.1500 Inch
Coating/Finish CVD
Material Solid Carbide
Relief Angle 0 Degree
Included Angle 35
Brand Sumitomo
Chipbreaker Type EUP
Inscribed Circle 0.3750 Inch
Insert Style VNMG
Product Name Turning Insert
Thickness 0.1875 Inch
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Corner Radius 0.0156 Inch
Number of Edges 4
Rake Angle 10 Degree
