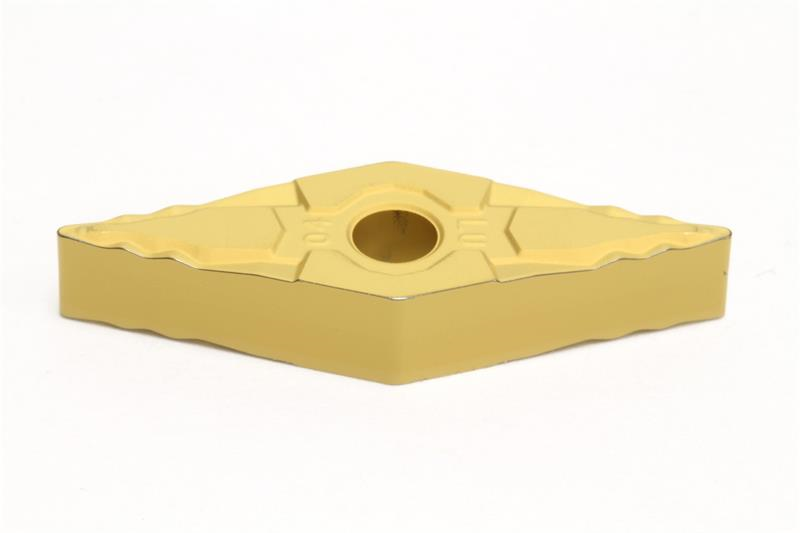

VNMG332 ELU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG332ELU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Number of Edges 4
Chipbreaker Type ELU
Grade AC820P
Mounting Hole Diameter 0.1500 Inch
Corner Radius 0.0313 Inch
Insert Size 332
Relief Angle 0 Degree
Insert Style VNMG
Shape Diamond
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Material Solid Carbide
Rake Angle 10 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Included Angle 35
Insert Type Negative
