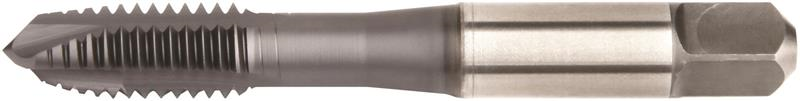

M3 x 0.5 TiCN Coated 3 Flutes D3 HSS-E Form B Plug Chamfer Spiral Point Tap
- Item Code: VTSPO5613 WP42EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VT-SPO
Multipurpose Taps
VariTap™ Spiral-Point HSS-E Taps
Through Holes
Tech Specs
Back To Top| Diameter | M3 X 0.5 |
|---|---|
| Shank Length | 27.50 MM |
| Thread Length | 14.80 MM |
| Unit of Measure | Metric |
| Overall Length | 49.30 MM |
| Product Name | Tap |
| Shank Diameter | 3.581 MM |
| Coating | TiCN |
| Pitch | 0.50 MM |
| Thread Type | METRIC |
| Brand | WIDIA |
| Number of Flutes | 3 |
| Shank Style | Square |
| Square Size | 2.74 MM |
| Coolant Through (Yes/No) | No |
| Thread Limit | D3 |
| Material | HSS-E-PM |
| Grade | WP42EG |
| Chamfer | Plug |
| Hand of Tool | Right Hand |
