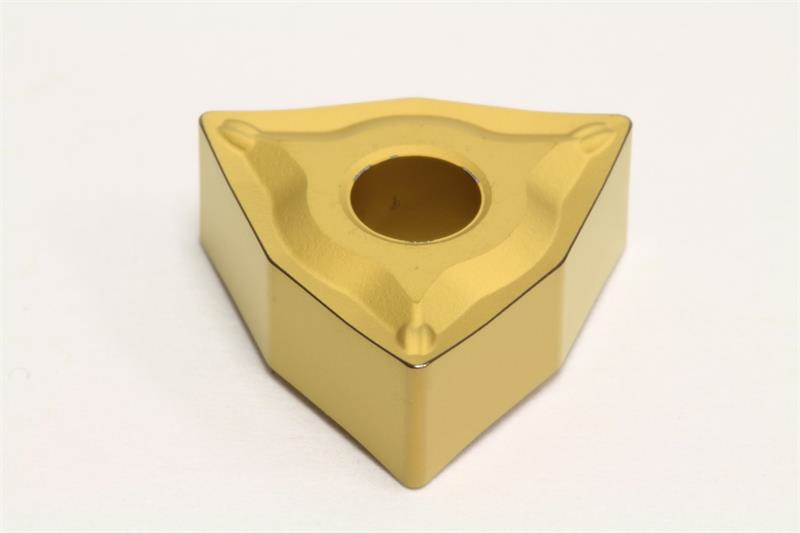

WNMG331 ESU AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: WNMG331ESU AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Insert Style WNMG
Insert Type Negative
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0156 Inch
Grade AC630M
Material Solid Carbide
Rake Angle 13 Degree
Inscribed Circle 0.3750 Inch
Number of Edges 3
Relief Angle 0 Degree
Brand Sumitomo
Chipbreaker Type ESU
Included Angle 80
Insert Size 331
Shape Trigon
