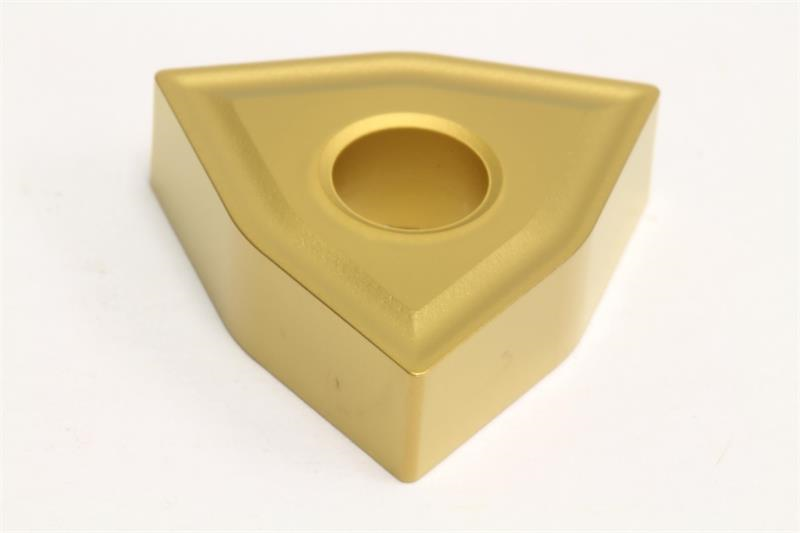

WNMG432 ENZ AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: WNMG432ENZ AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Number of Edges 3
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type ENZ
Corner Radius 0.0313 Inch
Insert Style WNMG
Rake Angle 4 Degree
Brand Sumitomo
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Coating/Finish Coated
Product Name Turning Insert
Included Angle 80
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
Relief Angle 0 Degree
Grade AC700G
Shape Trigon
