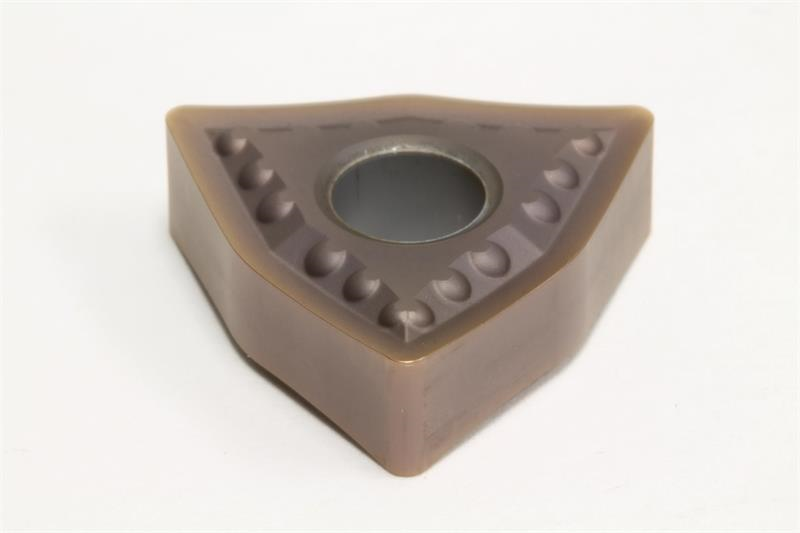

WNMG432 EUP AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: WNMG432EUP AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 80
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Coating/Finish PVD
Insert Style WNMG
Shape Trigon
Material Solid Carbide
Rake Angle 10 Degree
Inscribed Circle 0.5000 Inch
Number of Edges 3
Thickness 0.1875 Inch
Grade AC510U
Corner Radius 0.0313 Inch
Relief Angle 0 Degree
Chipbreaker Type EUP
Product Name Turning Insert
